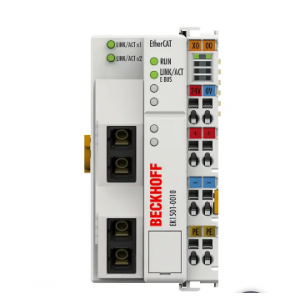

| Task within EtherCAT system |
coupling of EtherCAT Terminals (ELxxxx) to 100BASE-FX EtherCAT networks, with identity verification |
| Data transfer medium |
single-mode glass fiber 9/125 µm (SM) |
| Distance between stations |
max. 20,000 m (100BASE-FX) |
| Number of EtherCAT Terminals |
up to 65,534 |
| Type/number of peripheral signals |
max. 4.2 GB addressable I/O points |
| Number of configurable IDs |
4096 |
| Protocol |
EtherCAT |
| Delay |
approx. 1 µs |
| Data transfer rates |
100 Mbit/s |
| Bus interface |
2 x SC Duplex |
| Power supply |
24 V DC (-15 %/+20 %) |
| Current consumption from US |
150 mA + (∑ E-bus current/4) |
| Current consumption from UP |
load |
| Current supply E-bus |
2000 mA |
| Power contacts |
max. 24 V DC/max. 10 A |
| Electrical isolation |
500 V (power contact/supply voltage/Ethernet) |
| Weight |
approx. 190 g |
| Operating/storage temperature |
-25…+60 °C/-40…+85 °C |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity |
95 %, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. |
IP20/variable |
| Approvals/markings |
CE, UL, ATEX, IECEx |
| Ex marking |
ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc |
